Precision Machined SSIC Bushing for Canned Motor Pump

Brand Name : CSQ

Model Number : customized products

Certification : FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001

Place of Origin : China

MOQ : 20-50 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 2000pcs per month

Delivery Time : 20-45 work days

Packaging Details : Foam+carton box

Name : Ceramic Sliding Bearing

Category : Ceramic pump bearing

Material : Pressureless sintered silicon carbide/Zirconia

Size : Customized,according to the drawings

Use : canned motor pump

Package : Foam+carton box

keyword : canned motor pump bearing

type : crucial transmission part

Contact Now

Silicon Carbide Sliding Bearing for Canned Motor Pump

Customized Design and Material for High-Temperature Applications

Product Specifications

Attribute	Value
Name	Ceramic Sliding Bearing
Category	Ceramic pump bearing
Material	Pressureless sintered silicon carbide/Zirconia
Size	Customized, according to the drawings
Use	Canned motor pump
Package	Foam + carton box

Product Description

The sliding bearing serves as a crucial transmission component, functioning as both the support and rotary unit in canned motor pumps. Silicon carbide (SSiC) is an exceptional material choice for these bearings due to its outstanding corrosion resistance, wear resistance, and other superior properties.

Primary Applications

Ideal for canned motor pumps operating in corrosive environments with inorganic matter, acids, alkalis, and salts (SSiC standard bearing)
Suitable for canned motor pumps handling media prone to vaporization

Key Properties of Pressureless Sintered Silicon Carbide

Maximum Temperature	Up to 1650℃
Density	3.15-3.18 g/cm³
Thermal Expansion	4.0 (10-6/℃)
Thermal Conductivity	120 W/m°K
Hardness	2800 HV5
Elastic Modulus	410 GPa
Chemical Stability	Superior resistance to acid and alkali corrosion (including hydrofluoric acid)

Product Images

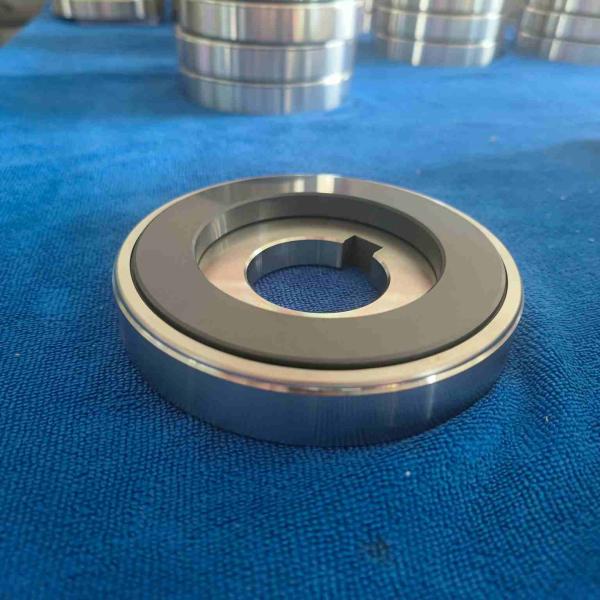

Precision Machined SSIC Bushing for Canned Motor Pump

Manufacturing Capabilities

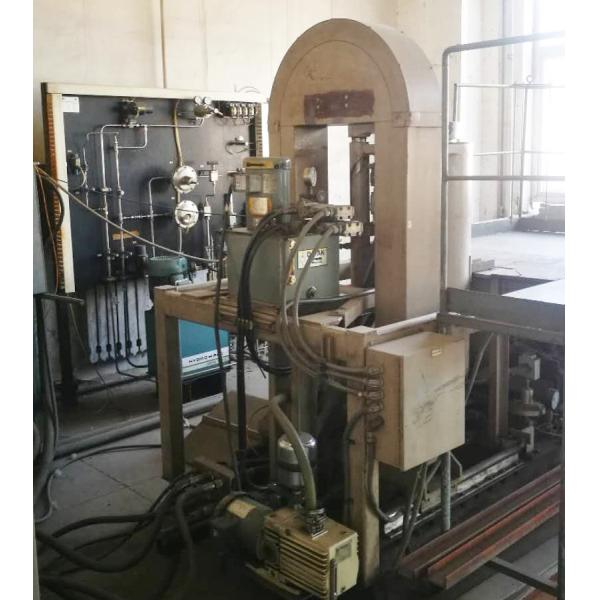

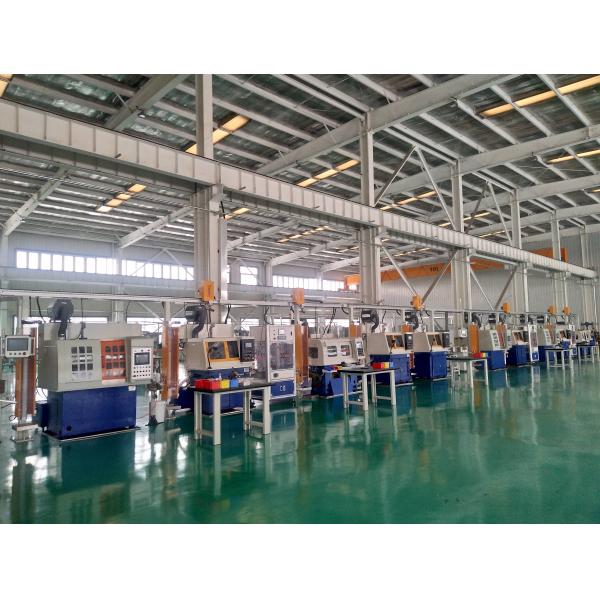

We operate three specialized factories in China, equipped with advanced pressing, sintering, and processing machinery to meet diverse customer requirements.

Product Tags:

Silicon Carbide sliding bearing for high-temperature

Customized ceramic sliding bearing for motor pump

High-performance canned motor pump bearing
